Disc springs
Compact, conical, and engineered for high load in minimal space, a disc spring – also known as a Belleville spring – is a precision component trusted across industries. Lesjöfors is a leading disc spring manufacturer with decades of experience delivering springs to the highest performance standards. We create solutions that combine exceptional load capacity, durability, and consistency.
Manufactured from premium materials and rigorously tested, every spring is built for reliable performance in demanding applications. Whether you need quality stock components delivered quickly or a custom-designed solution, our engineers are ready to assist.
Technical specifications
- Thickness:
0.10 - 12 mm
- Outer diameter:
Up to 500 mm
- Materials:
Spring steel, stainless steel, and super alloys
What are disc springs?

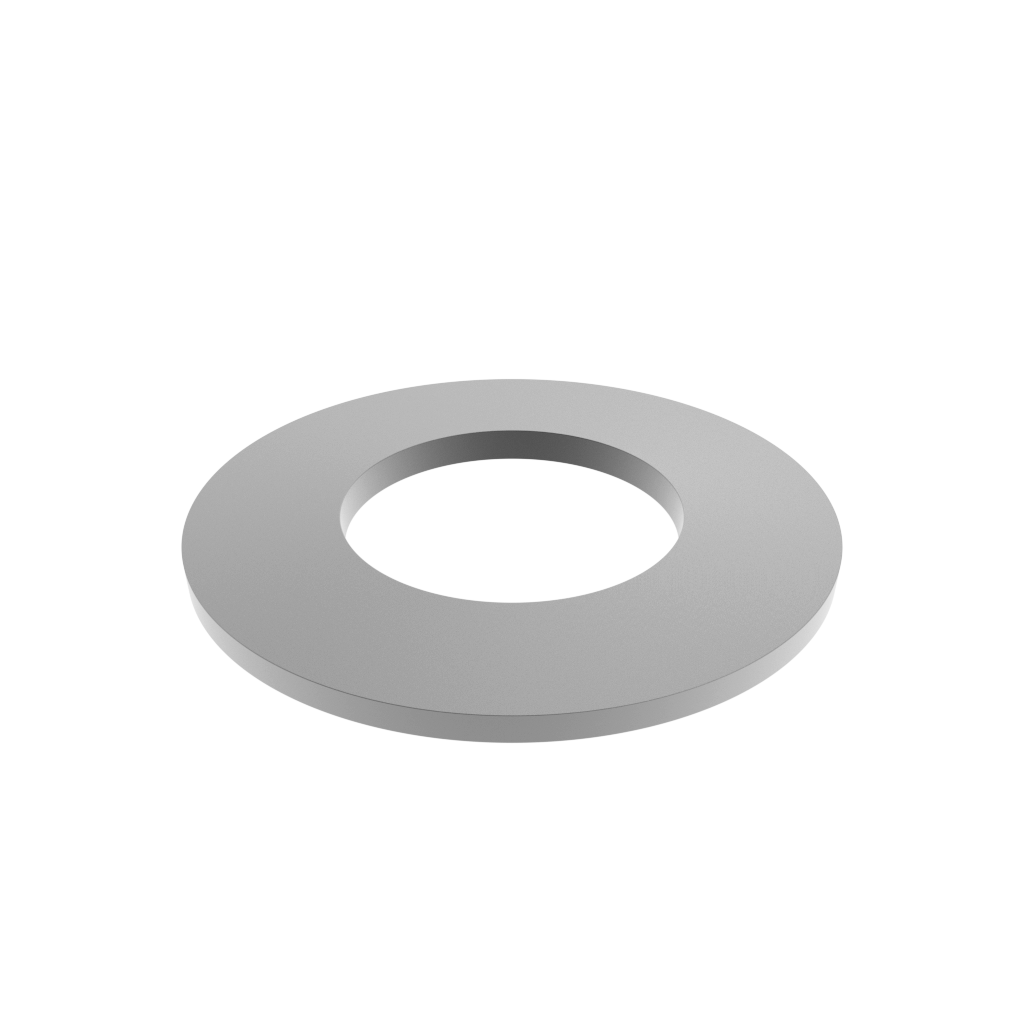

A disc spring is a conically shaped washer that generates an axial load when compressed. It is used as a compression spring and is ideal when forces are high and travel is relatively limited. Its geometry delivers high force with minimal deflection, making it ideal where space and weight are restricted.
Disc springs can be stacked in series or parallel to increase travel or force. Typically manufactured from spring steel, disc springs offer outstanding fatigue resistance, excellent energy storage capacity, and long service life.
These versatile components are used in a wide range of applications, from automotive clutches, brakes, and valve actuation systems to vibration dampening in heavy machinery.
Product range & stock availability

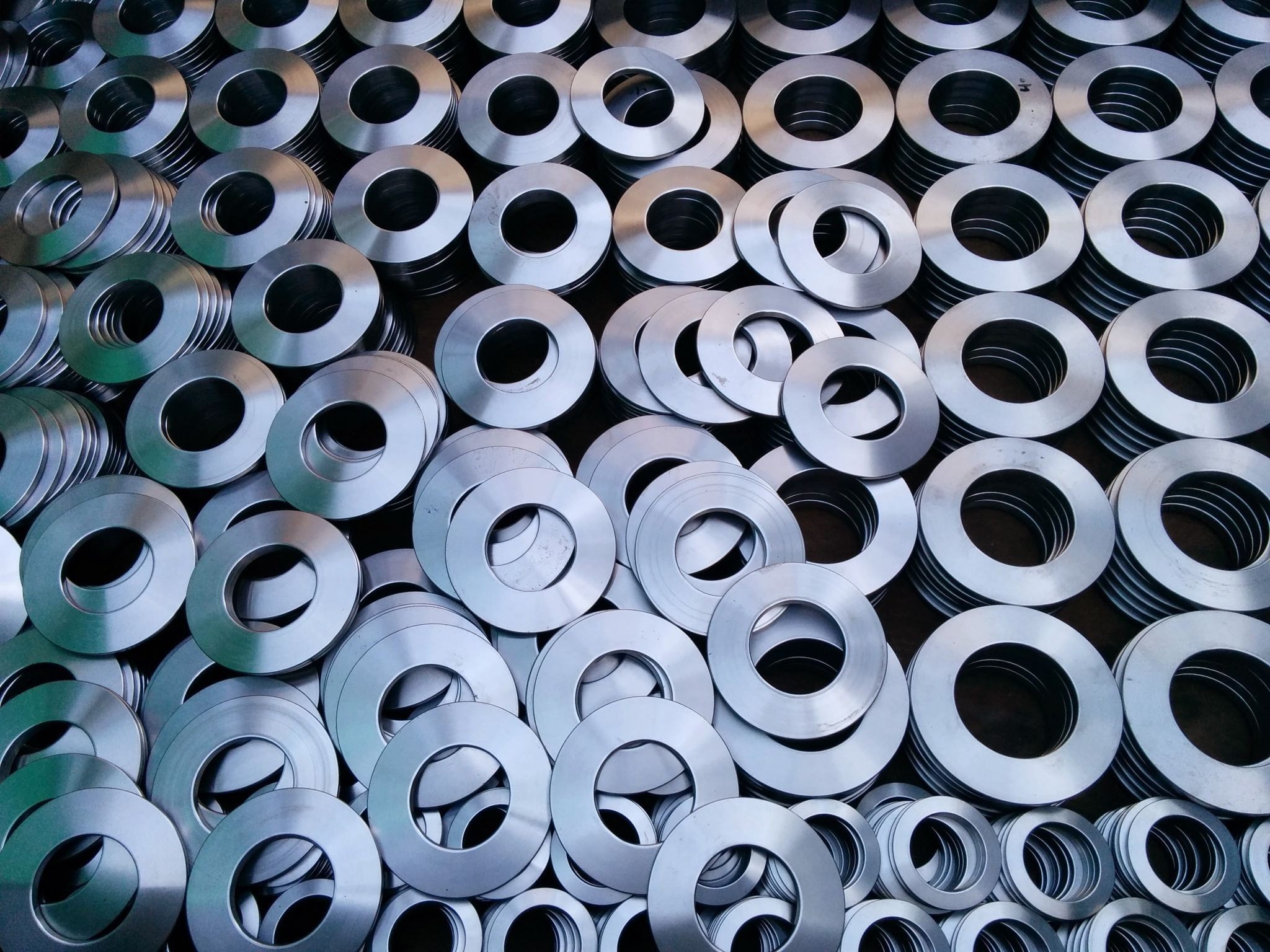

Stock disc springs
At Lesjöfors, we offer one of the industry’s most comprehensive ranges of spring products, including disc springs in a variety of sizes, materials, and load capacities.
With global distribution capabilities and an efficient online ordering system, we provide fast, reliable access to precision-engineered springs wherever your operations are based.
Custom disc springs
Every application has unique demands, and our disc springs are designed to meet them. We work closely with you to develop special disc springs tailored to your exact performance requirements, adjusting dimensions, selecting materials, and optimizing load-deflection characteristics.
Supported by decades of engineering expertise and a global supply network, we ensure every disc spring is fully optimized for its intended use.
Types of disc springs
There are several configurations of disc springs available, each suited to specific load requirements, space constraints, and performance conditions. Our engineering team manufactures and supplies:
Single disc springs
The most common configuration, used individually to provide a precise load over a short deflection range. Ideal for applications where high force is required in a compact space.
Disc spring series stack
Multiple disc springs stacked in series increase travel while maintaining the same load as a single spring. Used where greater deflection is needed without increasing force.
Stack disc spring in parallel
Parallel stacking increases load capacity while keeping deflection the same as a single spring. Commonly used in heavy-duty applications requiring very high forces.
Combination stacks
A mix of series and parallel stacking allows fine-tuning of both load and travel characteristics. Often used in highly specialized applications where precise performance is critical.
Slotted disc springs
Featuring radial slots to modify the load-deflection curve and reduce spring stiffness. Used where controlled flexibility and a softer spring rate are needed.
Advanced disc spring manufacturing

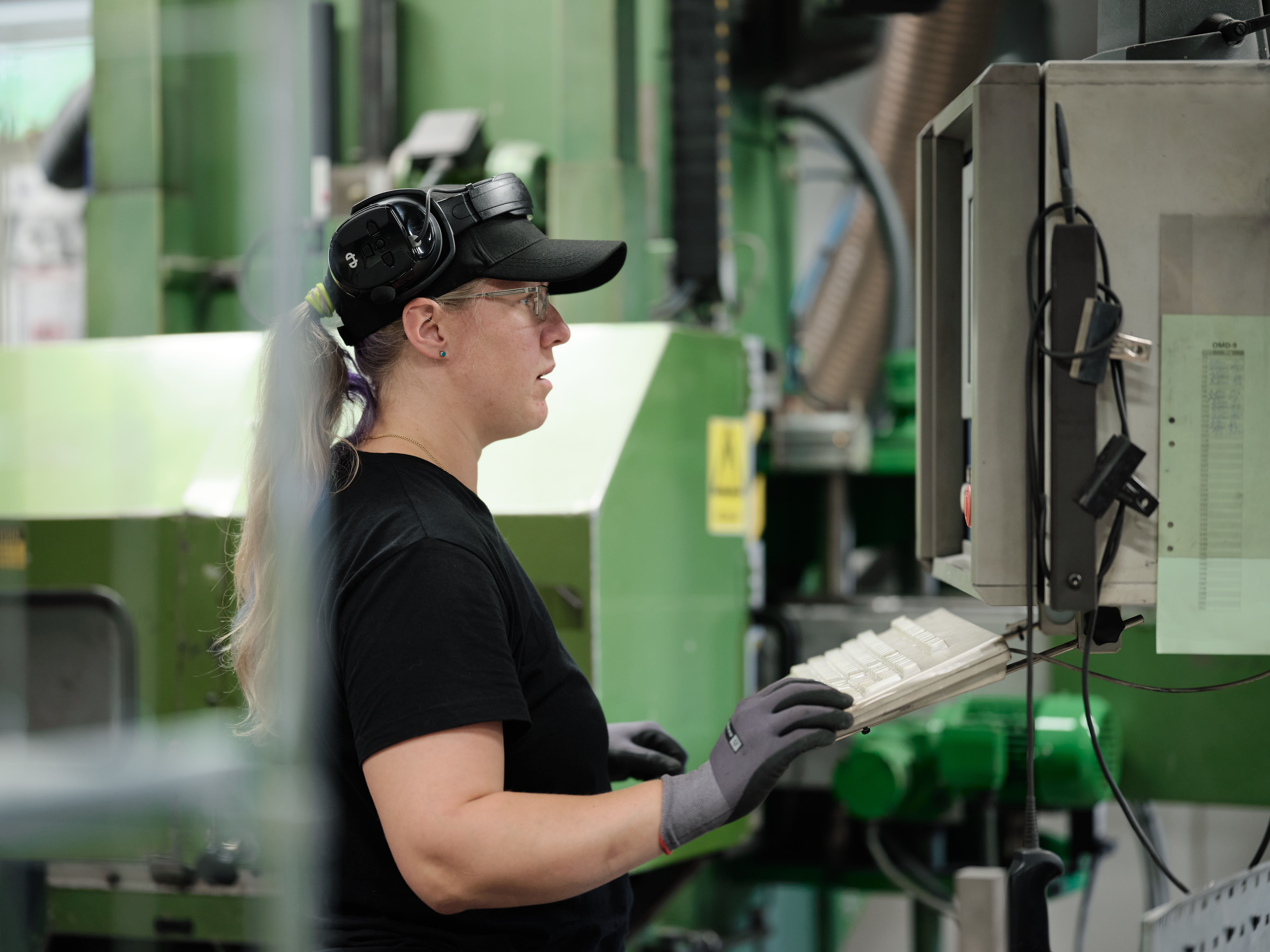

Our disc springs are manufactured for precision, strength, and reliable performance in the most demanding applications. Using advanced forming methods and premium materials, we achieve consistent quality, repeatable performance, and optimal load characteristics in every spring. Our processes are tailored to meet exact specifications, from heavy industrial equipment to high-performance aerospace systems.
- CNC forming – precision manufacturing for consistent load-deflection performance
- Quality assurance – ISO 14001, ISO 45001, and ISO 9001 certified
- Engineered for durability – designed to deliver long service life under extreme loads
How do disc springs work?
A disc spring is designed to generate an axial load when compressed, using its conical geometry to produce high force within a small deflection range. When stacked in series or parallel, these springs can be configured to increase travel, load capacity, or both, depending on application requirements.
Their design allows for precise load control, compensating for thermal expansion, wear, and relaxation in mechanical systems. Even under extreme conditions, the geometry ensures consistent performance, uniform load distribution, and long-term reliability.
Disc spring materials
The materials used to engineer disc springs directly impact their performance, durability, and service life. Spring steel disc springs are a popular choice for their high strength, fatigue resistance, and cost efficiency, making them suitable for a wide range of general-purpose applications. For environments with high humidity, corrosive agents, or extreme temperatures, stainless steel provides long-lasting protection without compromising load performance.
In the most demanding conditions, such as aerospace, offshore, or power generation, super alloys like Inconel deliver exceptional resistance to heat, oxidation, and wear. Lesjöfors offers one of the industry’s most extensive selections of disc spring materials. Our engineers work with you to select the best material for your application, ensuring optimal performance in any operating environment.
Common materials include:
- Spring steel
- Stainless steel
- Super alloys (e.g., Inconel)
Trusted in renewable energy and electronics systems
Supporting high-load wind turbine systems with precision disc springs
Trusted by renewable energy manufacturers, Lesjöfors disc springs support wind turbine systems, managing extreme loads, vibration, and fatigue to deliver compact design, long service life, and reliable performance onshore and offshore.
Delivering controlled force and contact stability in electronics
Used in switches and satellite systems, Lesjöfors disc springs provide compact load control, stable contact pressure, and long service life in space-constrained, performance-critical electronic applications.
Related products

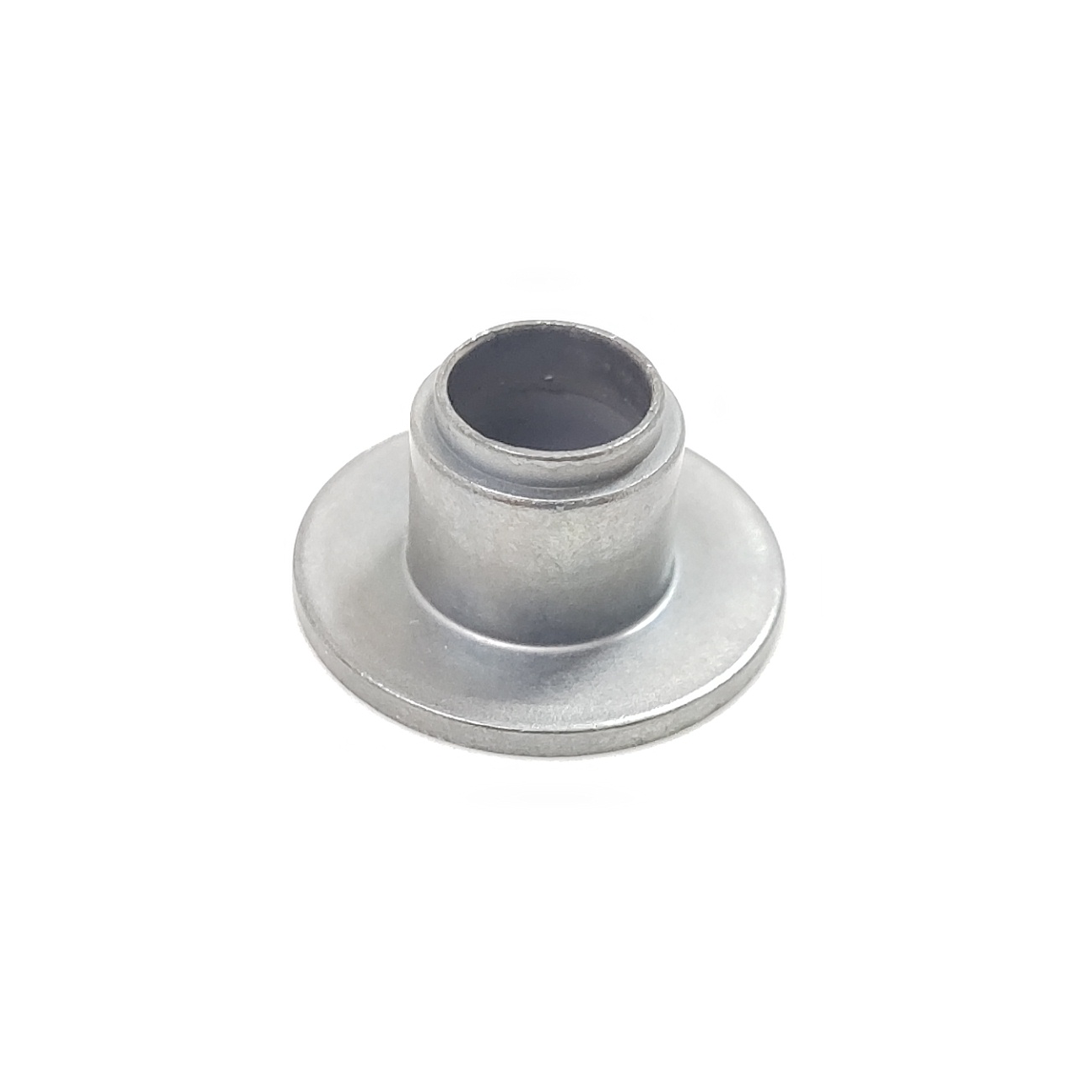

Deep drawn partsDeep drawn parts
Deep drawn parts produced using progressive or transfer tooling solutions.
Circlips and locking ringsCirclips and locking rings
Circlips and locking rings produced in various materials up to 2 mm thick.
Wave washersWave washers
Wave washers for axial force control with outer diameters of 9 – 250 mm.
